Powerful 1 Watt Signal Output
Compatible with most 8 & 33 kHz Cable Locators
512 Hz and 640 Hz Enabled
Compact Lightweight Design
3 Year Manufacturer Warranty
Fast Easy Secure Shopping
No Account Required

Description

The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD series cable locators can then be used to locate the signal from the Leica DD signal transmitter.

The DA signal transmitters are compact, robust and easy-to-use. They have been designed in conjunction with the DD120, DD130, and DD175 cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

Typically used to:

  • To improve the detection success.
  • To trace the route of a utility.
  • To make a depth or current* measurement in conjunction with a Leica DD series locator.

Features additional 512Hz and 640Hz Frequencies.

*Current measurement not available on all Leica DD series locator models.

Product Details

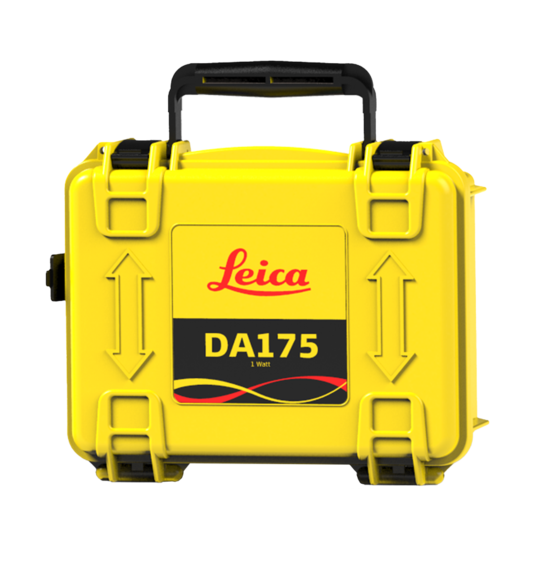

DA175 Features

  • 1 Watt Output.
  • Compatible with most 8 & 33 kHz Cable Locators
  • Designed for use with the DD120, DD130, and DD175 Connect Locators
  • IP67 rating
  • 3 Year warranty

Trace frequencies

  • 512Hz, 640Hz, 8kKHz, 33KHz
Model DA175 DA300
Induction Mode Frequencies 32.768 (33) kHz
8.192 (8) kHz
32.768 (33) kHz
8.192 (8) kHz
Power Output* Up to 1 Watt Max. Up to 1 Watt Max.
Direct Connection Mode Frequencies 32.768 (33) kHz
8.192 (8) kHz
640 Hz
512 Hz
131.072 (131) kHz / 83.078 (83) kHz / 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
Environmental Standard IP67 IP67
Operating Temperature -20° C to +50° C
-4° F to +122° F
-20° C to +50° C
-4° F to +122° F
Storage Temperature -40°C to +70°C, / -40°F to +158°F -40°C to +70°C, / -40°F to +158°F
Battery 4xD(LR20) size alkaline batteries 4xD(LR20) size alkaline batteries
Battery operating time** 15 h 15 h
Dimensions (HxWxD) 250 x 206 x 113 mm
9.84 x 8.11 x 4.45 inches
250 x 206 x 113 mm
9.84 x 8.11 x 4.45 inches
Weight with batteries 2.38Kg
5.25 lbs
2.38Kg
5.25 lbs

* Utility Impedence of 300 ohms

** Defined at 20°c (77°F) power level 2
